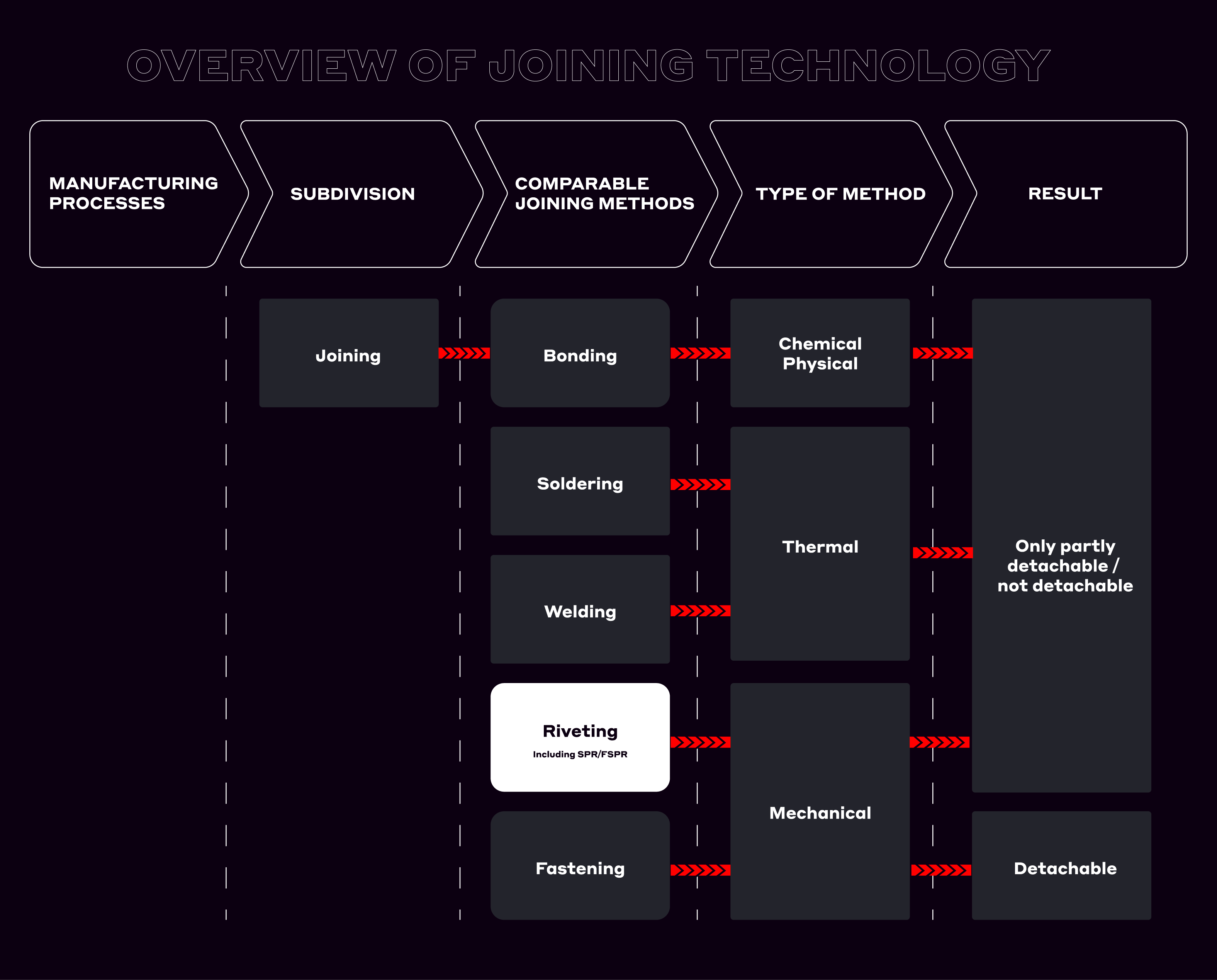

What is joining?
FSPR® Self-pierce riveting is a mechanical joining technique for identical or dissimilar materials, allowing the joining of two or more layers of varying thicknesses, pre-painted or pre-coated; no pre-drilling required. WHICH
WHICH SECTOR DO YOU WORK IN?
AUTOMOTIVEGENERAL INDUSTRY
TECHNOLOGY COMPARISON
FSPR TECHNOLOGY BENEFITS
01
Low risk of cracking
02
Small minimum edge distance (12 mm)
03
Can process high-hardness materials (non-metallic carbon fiber, metals with elongation <10%, 1800 MPa high-strength steel)
04
No pre-treatment required, simple operation
05
Lower tooling replacement frequency
06
Flat surface (hot-stamped steel may have a 0.5 mm protrusion)
SPR INDUSTRY CHALLENGES
01
High risk of cracking
02
Large minimum edge distance (20 mm)
03
High hardness, thick plates, and multi-layer materials offer no advantages
04
High tooling change frequency
05
Surface protrusions affect appearance (1.5–3.0 mm)
benefits of Fspr
HIGH STRENGTH JOINING
NO PRE-DRILLING REQUIRED
VISUALLY CHECKABLE POINT
STRONG ANTI-RUSTING ABILITY
ENVIRONMENTALLY FRIENDLY
FSPR IS GREAT WITH
Dissimilar materials of varying thicknesses
Lightweight
materials
High-strength
materials
Die-casted
parts
Thick
stack-ups

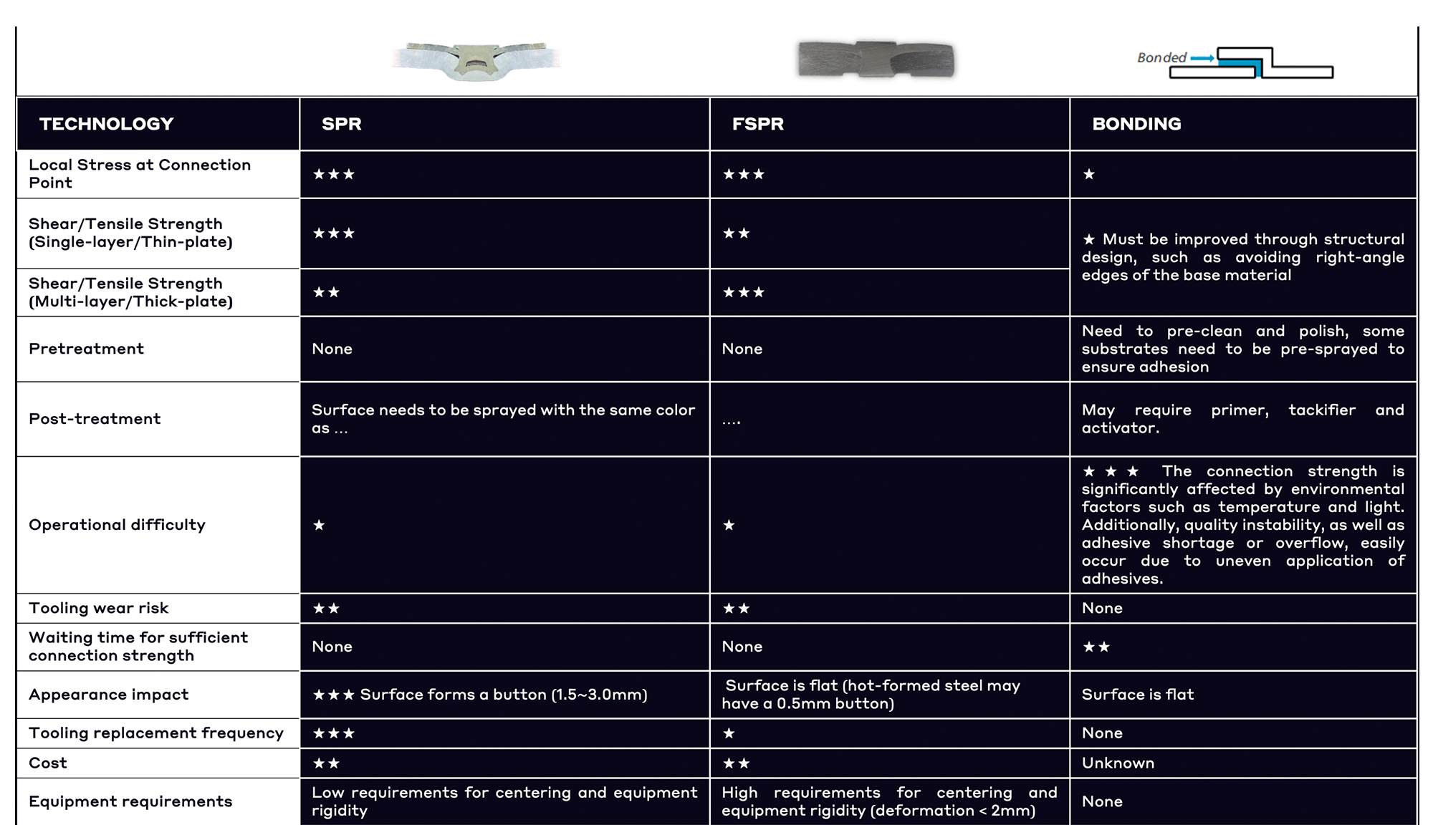

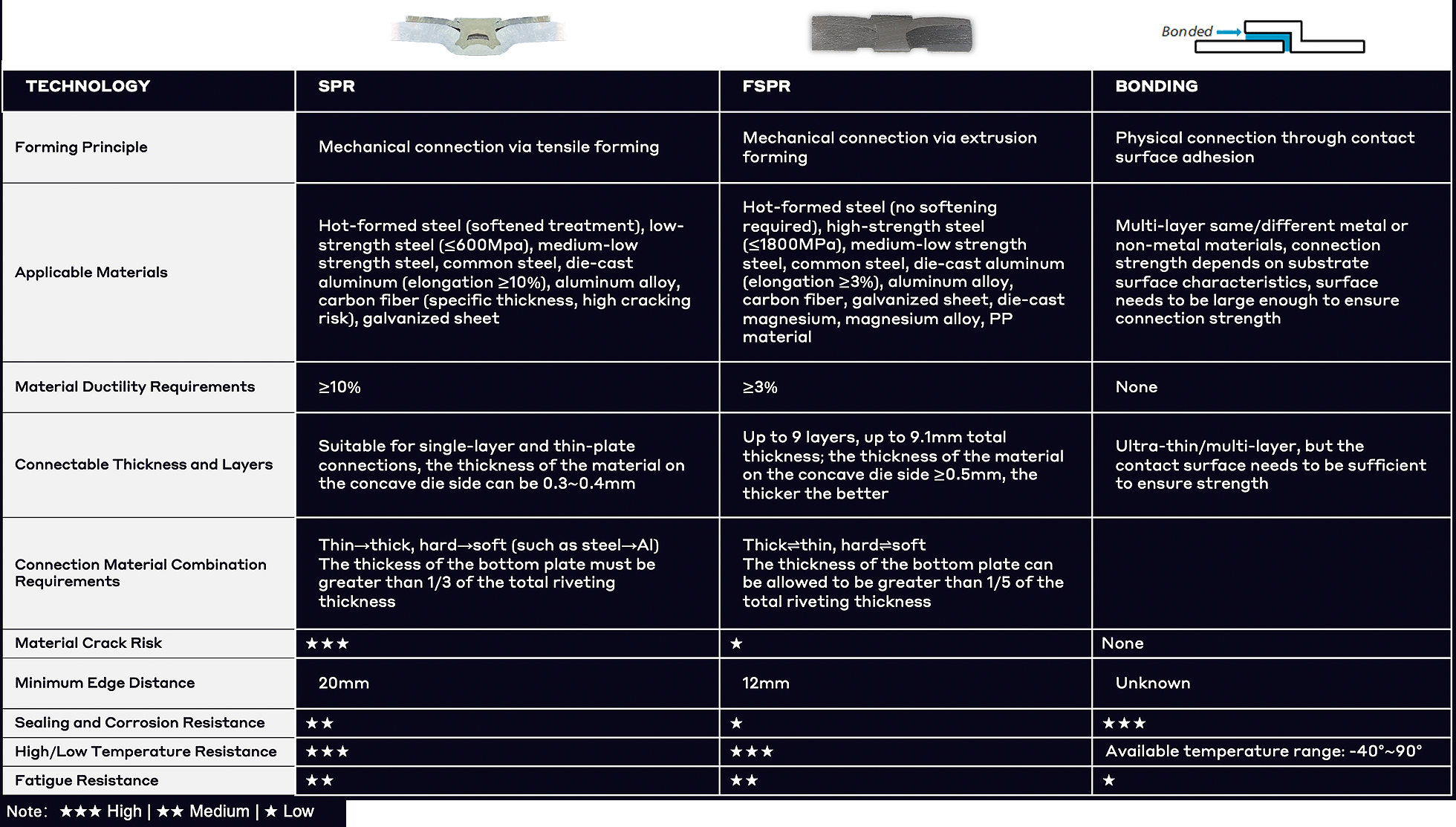

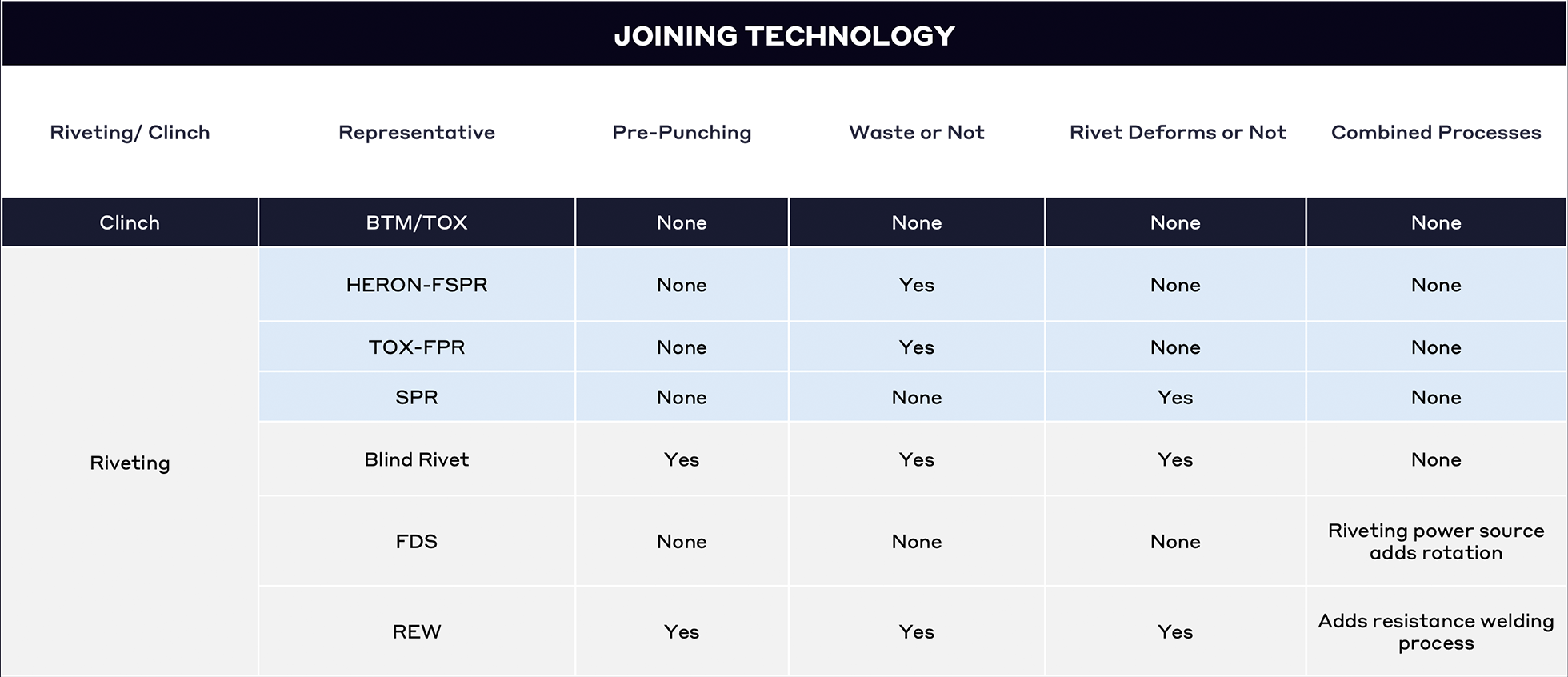

COMPARISON CHARTS
